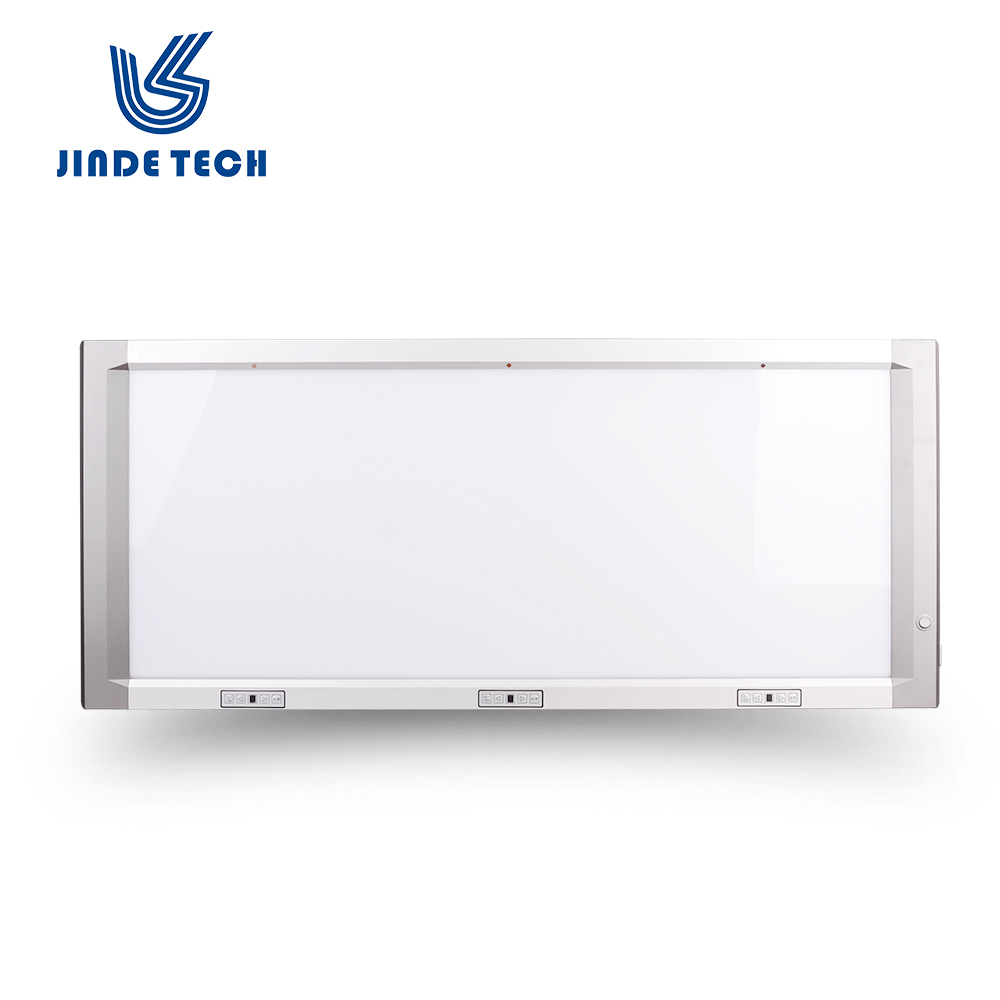

JD-01CIII LED x ray film viewer Technical Parameter
| Ⅰ | Item nr.and name | JD-01CIII Three panels LED film viewer |
| Ⅱ | Main technical specifications and requirements | |
| 1.1 | Main technical specifications | According with the newest professional industry standard YY/T0610-2007 published by China Food and Drug Administration. |
| *1.2 | Light source | Adopt patch type LED, each panel has≥378 LED,LED light source layout based on direct lattice type |
| 1.3 | Color temperature | 9600K |
| *1.4 | Highest Brightness | ≥4500cd/m2 |
| 1.5 | Uniformity | ≥98% |
| *1.6 | Dimming | Micro switch digital dimming, separate dimmer each panel. |
| *1.7 | LED circuit card | Use the whole board aluminum plate, excellent heat dissipation, thus ensuring LED longer life |
| *1.8 | Light the way | Allowed every panel light up and adjustable independently, and make sure the uniformity without shadow. With film sensor, light up after insert film, light off when pull film off. |
| 1.9 | Power Installation | The built-in power supply, turn off the power switch means disconnect the entire device |
| *1.10 | Gripping film way | Elastic silicone with patent applied by Jinde Tech |
| 1.11 | Thickness | 45mm,unique designed for set inside power supply, excellent heat dissipation, guaranteed quality. |
| 1.12 | Film viewer screen | The Mitsubishi brand |
| *1.13 | Power supply | 110v-240v/50HZ(wide voltage) |
| 1.14 | Power | ≤75W |
| 1.15 | Three panels viewing area(inch): 42"×17" External Dimension:1200mm×510mm×45mm | |
| *1.16 | The products have passed the European CE certification | |
